起订:100000pcs
供应:100000pcs
发送询价

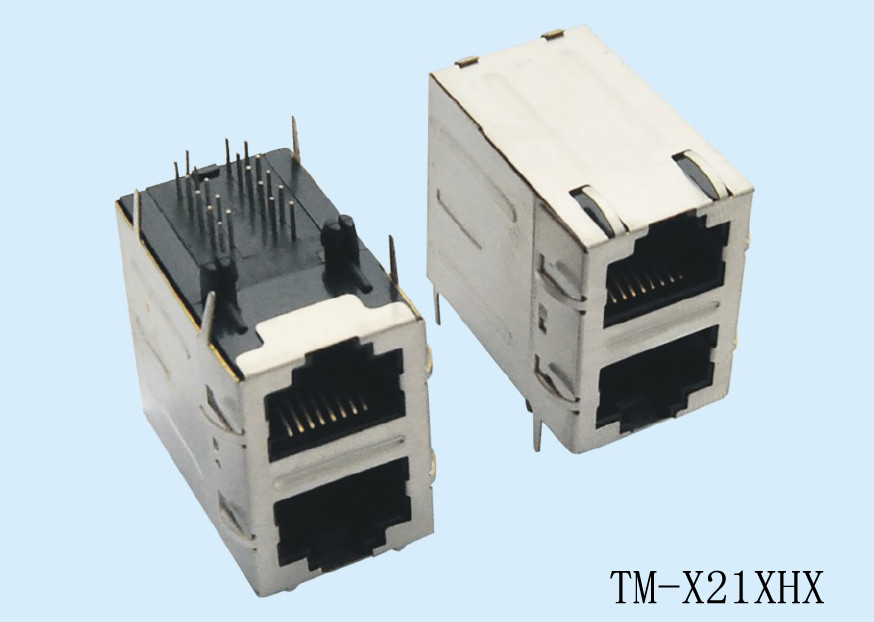

r r 额定电流r r 1.5（A）r r 额定电压r r 125（V）r r r 环境温度r r -40~85（℃）r r 壳体材质r r 黄铜r r r 导电体材质r r CUr r 产品认证r r ULr r r r rMATERIAL 1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON2. HOUSING COLOR : BLACK OR OTHERS3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mm&t=0.35mm4. PLATING: ConTACT AREA-SELECTING GOLD TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL 5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED 6. LED: OPTION SPECIFICATIONS ELECTRICAL1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.2. C W/W(pF MAX):28 pF3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz 5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz 6. CROSS TALK: 35 dB MIN @ 1-80 MhzMECHANICAL1. MATING FORCE: 2.27 Kgf MAX2. DURABILITY: 750 CYCLES MIN 3. PCB RETENTION PRE-SOLDER:1LB MIN ENVIRONMENTAL1. STORAGE :-40℃~85℃MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F. FEATUER 1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR 2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE 3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE 4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION 5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT 6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE 7. OPERATION TEMPERATURE RANGE:0℃~70℃r
